2 Stroke Engine Diagrams and Animation

2 Stroke Engine Animation

This article and pics courtesy of www.southernskies.net

As the 2 stroke engine animation below shows, a two-stroke engine in its purest form is extremely simple in construction and operation, as it only has three primary moving parts (the piston, connecting rod, and crankshaft). However, the two-stroke cycle can be difficult for some to visualize at first because certain phases of the cycle occur simultaneously, causing it to be hard to tell when one part of the cycle ends and another begins.

Several different varieties of two-stroke engines have been developed over the years, and each type has its own set of advantages and disadvantages. The subject of the 2 stroke engine animation (and this dissertation) is known as a case-reed type because induction is controlled by a reed valve mounted in the side of the crankcase.

2 stroke engine animation running

The easiest way to visualize two-stroke operation is to follow the flow of gases through the engine starting at the air inlet. As in the 2 stroke engine animation and diagram, in this case, the cycle would begin at approximately mid-stroke when the piston is rising, and has covered the transfer port openings:

2 stroke engine diagram transfer ports closed

As the piston moves upward, a vacuum is created beneath the piston in the enclosed volume of the crankcase. Air flows through the reed valve and carburetor to fill the vacuum created in the crankcase. For the purposes of discussion, the intake phase is completed when the piston reaches the top of the stroke (in reality, as shown in the 2 stroke engine animation, mixture continues to flow into the crankcase even when the piston is on its way back down due to the inertia of the fuel mixture, especially at high RPM):

2 stroke engine diagram piston at top dead center

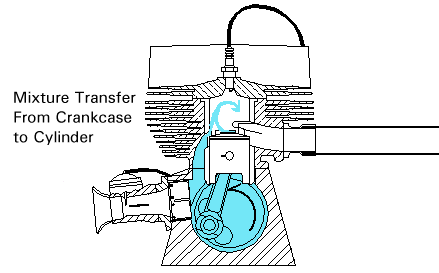

During the down stroke, the falling piston creates a positive pressure in the crankcase which causes the reed valve to close. The mixture in the crankcase is compressed until the piston uncovers the transfer port openings, at which point the mixture flows up into the cylinder. The engine depicted in the 2 stroke engine animation and diagrams is known as a loop-scavenged two-stroke because the incoming mixture describes a circular path as shown in the picture below. What is not readily apparent in the picture is that the primary portion of the mixture is directed toward the cylinder wall opposite the exhaust port (this reduces the amount of mixture that escapes out the open exhaust port, also known as short-circuiting):

2 stroke engine diagram transfer ports open

Mixture transfer continues until the piston once again rises high enough to shut off the transfer ports (which is where we started this discussion). Let's fast-forward about 25 degrees of crank rotation to the point where the exhaust port is covered by the piston. The trapped mixture is now compressed by the upward moving piston (at the same time that a new charge is being drawn into the crankcase down below) as shown in the 2 stroke engine animation and the diagram here:

2 stroke engine diagram compression

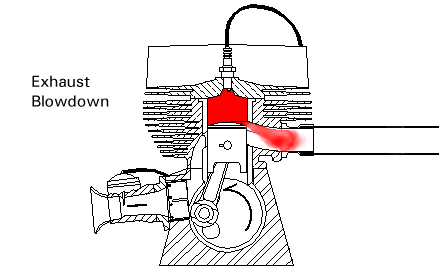

Somewhat before the piston reaches the top of the stroke (approximately 30 degrees of crank rotation before top-dead-center), the sparkplug ignites the mixture. If you watch the 2 stroke engine animation you will see this event is timed such that the burning mixture reaches peak pressure slightly after top dead center. The expanding mixture drives the piston downward until it begins to uncover the exhaust port. The majority of the pressure in the cylinder is released within a few degrees of crank rotation after the port begins to open:

2 stroke engine diagram exhaust

Residual exhaust gases are pushed out the exhaust port by the new mixture entering the cylinder from the transfer ports. In the 2 stroke engine animation you can see the gases moving out of the exhaust at the same time new mixture is entering the cylinder.

That completes the chain of events for the basic two-stroke cycle. The discussion is not complete. The 2 stroke engine animation demonstration has an added device commonly known as an expansion chamber attached to the exhaust port. The expansion chamber (an improperly named device) utilizes sonic energy contained in the initial sharp pulse of exhaust gas exiting the cylinder to supercharge the cylinder with fresh mixture. This device is also known as a tuned exhaust.

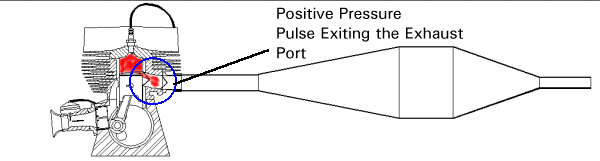

Picking up the discussion at the point shown by the exhaust blowdown picture above, an extremely high energy pulse of exhaust gas enters the header pipe when the piston begins to open the exhaust port, you can see these pulses in the 2 stroke engine animation:

2 stroke engine diagram pressure pulse

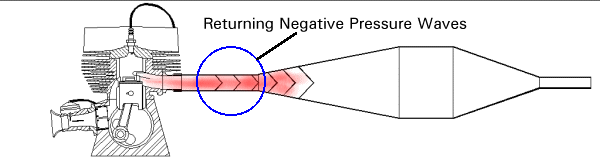

The sonic compression wave resulting from this abrupt release of cylinder pressure travels down the exhaust pipe until it reaches the beginning of the divergent cone, or diffuser, of the expansion chamber. From the perspective of the sound waves reaching this junction, the diffuser appears almost like an open-ended tube in that part of the energy of the pulse is reflected back up the pipe, except with an inverted sign;(a rarefaction, or vacuum pulse is returned). Watch the 2 stroke engine animation closely to see the waves reflected back up the pipe. The angle of the walls of the cone determine the magnitude of the returned negative pressure, and the length of the cone defines the duration of the returning waves:

2 stroke engine diagram returned negative pressure

The negative pressure assists the mixture coming up through the transfer ports, and actually draws some of the mixture out into the exhaust header. Meanwhile, the original pressure pulse is still making its way down the expansion chamber, although a considerable portion of its energy was given up in creating the negative pressure waves. The convergent section of the chamber appears like a closed-end tube to the pressure pulse, and as such causes another series of waves to be reflected back up the pipe, except these waves are the same sign as the original (a compression, or pressure wave is returned). Notice that this cone has a sharper angle than the diffuser, so that a larger proportion of energy is extracted from the already weak pressure pulse. Watch the fresh green mixture in the 2 stroke engine animation get drawn into the expansion chamber before the returning waves "squeeze" it back into the combustion chamber:

2 stroke engine diagram mixture extraction

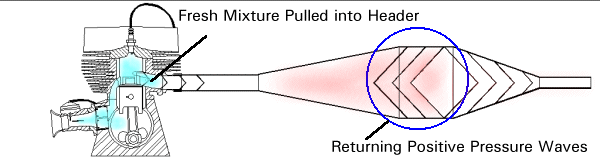

This pulse is timed to reach the exhaust port after the transfer ports close, but before the exhaust port closes. The returning compression wave pushes the mixture drawn into the header by the negative pressure wave back into the cylinder, thus supercharging (a bigger charge than normal) the engine. The straight section of pipe between the two cones exists to ensure that the positive waves reaches the exhaust port at the correct time. As illustrated in the 2 stroke engine animation, the pipes build specifications are extremely important on a 2 stroke engine:

2 stroke engine diagram pressure wave supercharging

Since this device uses sonic energy to achieve supercharging, it is regulated by the speed of sound in the hot exhaust gas, the dimensions of the different sections of the exhaust system, and the port durations of the engine. Because of this, it is only effective for a very narrow RPM range. This explains why two-stroke motorcycles equipped with expansion chambers have such vicious powerbands (especially in the old days before variable exhaust port timing existed). With the design illustrated here (i.e. a single divergent stage and a single convergent stage), the powerband of the engine will be akin to a 'light switch' - once the expansion chamber goes into resonance, there will be a HUGE, almost instantaneous increase in power. As the 2 stroke engine animation illustrates, the timing of the pressure waves is perfect at a certain RPM resulting in the 2 stroke engine "coming on pipe". The powerband can be softened somewhat by reducing the angles on the cones, but this is simply due to a lower degree of supercharging. In order to get the best of both worlds (a large power increase and a wide powerband), the cones should consist of several sections, with a different angle for each section. Proper design of even a simple expansion chamber is somewhat of a black art, even though formulae exist that will get you in the ballpark (there is quite a bit more to this than simply choosing the appropriate angles and lengths based on sonic velocity - everything about the pipe comes into play, including the headpipe diameter and length, and the tailpipe ('stinger') diameter and length). Design of a multi-stage expansion chamber becomes incredibly difficult - it basically comes down to the old 'cut and try' approach in the end. This of course is not even considering whether or not the exhaust and transfer port timings and outlet areas have been optimized for expansion chamber use.

The 2 stroke engine animation is a tool to help you understand the importance of port timing and exhaust waves in a 2 stroke engine.
